家里使用了HP Gen8
作为NAS
服务器,对于iLO/BIOS来说,可以直接通过控制台升级。但是网卡/磁盘阵列的固件升级需要使用HP Service Pack for ProLiant(HP SSP)
来升级。具体升级过程如下:
继续阅读使用HP Service Pack for ProLiant Gen8.1升级HP ProLiant MicroServer Gen8固件
HP ProLiant MicroServer Gen8惠普服务器是一款采用小巧、静音和时尚设计的服务器,是朗思通普小型企业首台服务器解决方案的理想之选。 它具有易于使用和维护的外形尺寸,帮助小型企业减少开支,同时提升生产率、效率和安全性。
家里使用了HP Gen8
作为NAS
服务器,对于iLO/BIOS来说,可以直接通过控制台升级。但是网卡/磁盘阵列的固件升级需要使用HP Service Pack for ProLiant(HP SSP)
来升级。具体升级过程如下:
继续阅读使用HP Service Pack for ProLiant Gen8.1升级HP ProLiant MicroServer Gen8固件
HPE iLO 4 用户指南
注意,升级BIOS,不需要创建启动U盘,更不需要安装Windows系统,只需要网页端通过iLO操作即可实现。
iLO 当前的版本分为硬件版本和软件版本
可以根据 升级 HP MicroServer Gen8 iLO 秘笈 的介绍,从HPE官网搜索并下载BIOS文件(官网建议下载Windows 版本的升级包,里面文件解压缩后最少),也可以从本站下载BIOS
固件 iLO2.5 或者 HP Gen8 BIOS 20190404。
iLO2.5 解压缩完成后,其中的cp031064 gen8 bios 2015.11.02.exe
就是我们需要升级的BIOS
固件。
HP Gen8 BIOS 20190404 解压缩出来的cp039540.exe
也是我们需要升级的BIOS
固件,这个是目前最新的版本。
我们用7z
等解压缩软件,解压缩出里面的文件,iLO 2.5中的CPQJ0612.F62
或者 HP Gen8 BIOS 20190404 中的CPQJ0613.684
就是我们的升级文件,两者都可以,一般建议用最新的 HP Gen8 BIOS 20190404 里面的文件。
iLO
是Integrated Ligths-out
的简称,是HP
服务器上集成的远程管理端口,它是一组芯片内部集成vxWorks
嵌入式操作系统,通过一个标准RJ45
接口连接到工作环境的交换机。只要将服务器接入网络并且没有断开服务器的电源,不管HP
服务器的处于何种状态(开机、关机、重启),都可以允许用户通过网络进行远程管理。简单来说,iLO
是高级别的远程KVM
系统,可以将服务器的显示信息显示在本地,并且使用本地的键盘鼠标控制、操作服务器,并可以将本地的光盘镜像、文件夹作为虚拟光驱映射并加载到服务器中。使用iLO
,可以完成低层的BIOS
设置、磁盘RAID
配置、操作系统的安装等底层的工作,并且可以在完成系统安装后实现系统的远程控制与管理。
iLO 当前的版本分为硬件版本和软件版本
iLO 2.73版本新增了基于HTML5
的远程控制台,比以前方便多了,建议升级这个版本。
可惜HP
官网上并没有在明显的位置找到iLO
的升级文件下载的地方,可参考 升级 HP MicroServer Gen8 iLO 秘笈 的介绍,自己搜索下载需要的版本。也可依赖网友们共享已经下载完成的更新文件。

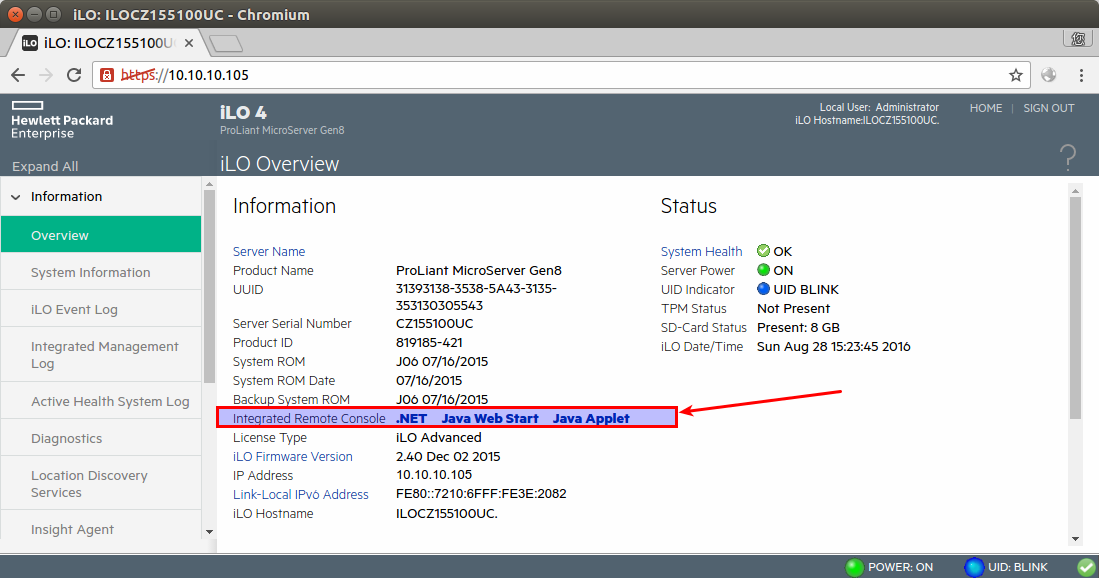

HP Gen8
的远程控制支持.Net
,Java Web Start
,Java Applet
三种控制方式,如下图所示:
在Windows
下面首选是.Net
方式,简单,快速,比较坑的就是必须在IE
浏览器下面点击链接,在FireFox
,Chrome
中点击这个链接都是无效的。那么如何在Ubuntu 16.04
下面运行远程控制呢?答案就是使用Java Web Start
。但是Java Web Start
下载下来的是iLO-jirc.jnlp
这个文件,那么如何运行这个文件呢?如下方式即可:
1 2 |
$ sudo apt install icedtea-netx $ javaws iLO-jirc.jnlp |
MicroServer Gen8属于HPE(Hewlett Packard Enterprise,惠普企业级产品)而不是HP,MicroServer Gen8的支持页面(如驱动下载)在HPE,官网首页是http://www.hpe.com,不是http://www.hp.com。
HPE大约从2015年起变更了服务支持策略,普通驱动可以无限制下载,但是BIOS、SPP更新等可能需要用主机序列号注册、且在主机质保期内方能下载,超期就只能等待别人搬运分享了。
MicroServer Gen8在AHCI模式时,五个SATA和普通主板的功能一样,唯一不同的是MS G8的BIOS不能选择用哪个硬盘启动。
它会尝试从SATA1引导,如果SATA1没有连接硬盘,则尝试从SATA2引导,以此类推。
可是SATA1~4是硬盘笼子;通常人们都是将4个3.5寸仓库盘放到笼子里面;然后通过SATA5连接一个2.5寸硬盘(放置在9.5mm光驱位置)做系统盘。当五个硬盘都连接时,BIOS仅尝试从SATA1引导,结果出现引导失败。
解决方法就是通过安装一个U盘或MicroSD卡,从而间接引导SATA5接口上的系统盘。
网上给出的方法都是引导Windows系统的,而我们安装的如果是Linux系统的话,则无法简单的使用这些方法来引导系统的。
自己探索了一下,通过使用Rufus来使用并且修改Super GRUB2 Disk的方式来启动Debian的方法。
只插上光驱位置上的硬盘,然后安装Debian Linux系统,只有这样,才能正常安装系统,否则会出现无法安装到正确的磁盘上面。

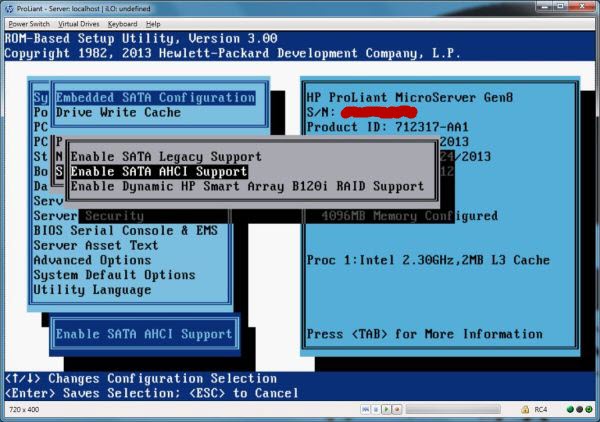

通过 Intelligent Provisioning安装根本就找不到 tf卡(在 bios中可以把默认的 Dynamic HP Smart Array改成 SATA AHCI模式后就可以顺利安装了,但这样 raid功能也没了)
下载Super GRUB2 Disk最新的镜像文件,官网为http://www.supergrubdisk.org/,一定要下载hybrid
版本。
下载Rufus最新的版本,官网地址为https://rufus.akeo.ie/
也可以在本网站下载我使用的版本Super GRUB2 Disk,rufus-3.10
按照下图的步骤处理:

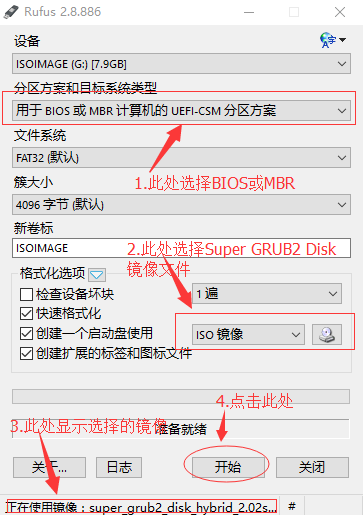

如果使用2.8.x版本,参考下图(注意,如果使用最新的2.0.4版本的Super GRUB2 Disk,只能使用3.11.x版本的Rufus)

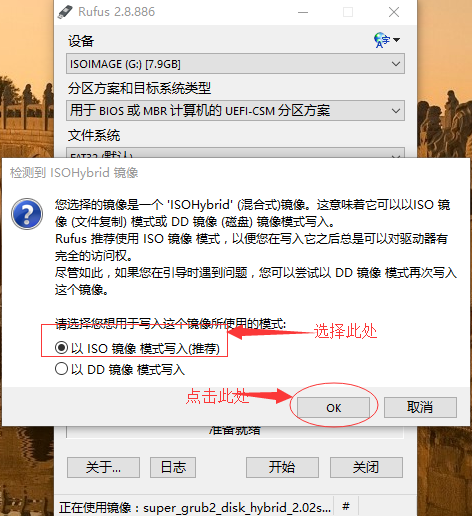

只有如下选项才能保证可以在Windows中可以正常访问修改Super GRUB2 Disk已经安装到SD卡上的内容。

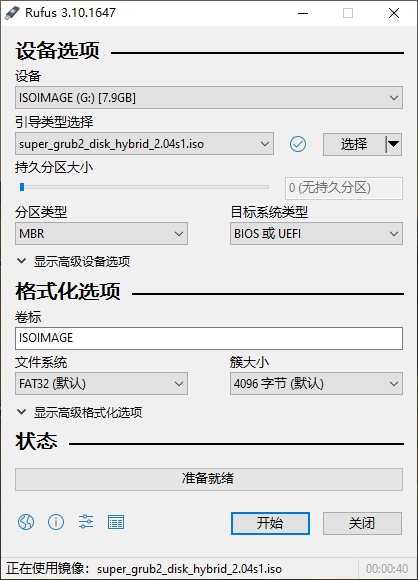

如果使用3.10.x版本(已知Rufus 3.11.1678
写入的数据无法引导系统,只能使用3.10.x
版本),参考下图
只有如下选项才能保证可以在Windows
中可以正常访问修改Super GRUB2 Disk
已经安装到SD
卡上的内容。
在刻录好的SD卡的\boot\grub
(Super GRUB2 Disk 2.02)或者\boot\grub\sgd
(Super GRUB2 Disk 2.04)目录下创建一个名为Gen8.cfg
的配置文件,内容如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 |
# Super Grub Disk - Gen8.cfg set option_title=$"Gen8" function run_option { echo "Starting Gen8 ..." #for uuid #search --set=root --fs-uuid 763A-9CB6 #for file search --set=root --file /boot/grub/grubenv set prefix=(${root})/boot/grub normal } |
一般建议是通过指定磁盘的uuid
的方法来启动系统,如果能够确定系统磁盘上存在一个唯一的文件,也可以通过简单的指定文件的方法来让GRUB2
来搜索的方式找到启动磁盘。
对于 Super GRUB2 Disk 2.02
修改\boot\grub\main.cfg
,在
process_main_option "${prefix}/language_select.cfg"
这行代码下面增加
process_enable "${prefix}/Gen8.cfg" rootmenu
对于 Super GRUB2 Disk 2.04
修改\boot\grub\sgd\main.cfg
,在
process_main_option "${sg2d_directory}/language_select.cfg"
这行代码下面增加
process_enable "${sg2d_directory}/Gen8.cfg" rootmenu
并且打开被注释掉的set timeout=10
项目,让系统自动启动,否则需要手工点击一下回车。
修改后的内容如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 |
# Super Grub Disk Main Configuration file # Copyright (C) 2009,2010,2011,2012,2013,2014,2015 Adrian Gibanel Lopez. # # Super Grub Disk is free software: you can redistribute it and/or modify # it under the terms of the GNU General Public License as published by # the Free Software Foundation, either version 3 of the License, or # (at your option) any later version. # # Super Grub Disk is distributed in the hope that it will be useful, # but WITHOUT ANY WARRANTY; without even the implied warranty of # MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the # GNU General Public License for more details. # # You should have received a copy of the GNU General Public License # along with Super Grub Disk. If not, see <http://www.gnu.org/licenses/>. # Configure gfxterm, but allow it to be disabled by holding shift during boot. # gfxterm is required to display non-ASCII translations. loadfont "$prefix/unifont.pf2" if keystatus --shift; then disable_gfxterm=true # export disable_gfxterm is needed so that the setting will persist even after # a "configfile /boot/grub/main.cfg" (which is what language_select.cfg does after # you select a new language) export disable_gfxterm # The following strings are intentionally not made translateable. echo "It has been detected that the shift key was held down. Because of this SG2D" echo "will use VGA text mode rather than gfxterm. This will cause display problems" echo "when using some non-English translations." echo echo "Press escape to continue to the main menu" sleep --interruptible 9999 fi if [ "$disable_gfxterm" != true ]; then insmod all_video gfxmode=640x480 if terminal_output --append gfxterm then terminal_output --remove console fi fi # Export the variables so that they persist when loading a new menu. export menu_color_normal export menu_color_highlight export menu_color_background export bwcolor function set_sgd_colors { if [ "$bwcolor" = "yes" ]; then menu_color_normal=white/black menu_color_highlight=black/white menu_color_background=black/white else menu_color_normal=white/brown menu_color_highlight=white/blue menu_color_background=yellow/cyan fi } set_sgd_colors # Set secondary_locale_dir to the directory containing SG2D specific mo files. # This makes grub aware of translations for SG2D specific strings. secondary_locale_dir="${prefix}/sgd_locale/" insmod part_acorn insmod part_amiga insmod part_apple insmod part_bsd insmod part_gpt insmod part_msdos insmod part_sun insmod part_sunpc function process_main_option { set option_cfg="$1" source "${option_cfg}" menuentry "${option_title}" "${option_cfg}" { set chosen="" export chosen set sourced_cfgs="${2}" export sourced_cfgs configfile "${prefix}/processoption.cfg" } } function process_option { set option_cfg="$1" source "${option_cfg}" menuentry "${finaloption_tab_str}${option_title}" "${option_cfg}" { set chosen="" export chosen set sourced_cfgs="${2}" export sourced_cfgs configfile "${prefix}/processoption.cfg" } } function process_enable { set option_cfg="$1" set forced_prefix="$2" if [ "$forced_prefix" = "rootmenu" ]; then menu_prefix_str="" else menu_prefix_str="${finaloption_tab_str}" fi source "${option_cfg}" menuentry "${menu_prefix_str}${option_title}" "${option_cfg}" { set chosen="" export chosen set sourced_cfgs="${2}" export sourced_cfgs configfile "${prefix}/processenable.cfg" } } function submenu_title { menuentry "${secondoption_prefixtab_str}${chosen}${secondoption_postfixtab_str}" { sleep 1s } } # Timeout for menu set timeout=10 # Set default boot entry as Entry number 2 (counting from 0) set default=2 # Init Super Grub2 Disk variables insmod regexp regexp -s "sg2d_dev_name" '^\((.*)\).*$' "$prefix" rmmod regexp export sg2d_dev_name # Get the version number for this Super GRUB2 Disk release source "${prefix}/version.cfg" # Get design variables source "${prefix}/design.cfg" menuentry " ====---==- Super Grub2 Disk $sgrub_version -==---==== " { # Set pager=1 so ls output doesn't scroll past the top of the screen # but restore $pager to its previous value when finished set oldpager="${pager}" set pager=1 cat /boot/grub/AUTHORS cat /boot/grub/COPYING set pager="${oldpager}" unset oldpager echo $"Press escape to return to the main menu" sleep --interruptible 9999 } process_main_option "${prefix}/language_select.cfg" process_enable "${prefix}/gen8.cfg" rootmenu # Everything menuentry $"Detect and show boot methods" { configfile "${prefix}/everything.cfg" } process_enable "${prefix}/enableraidlvm.cfg" rootmenu process_enable "${prefix}/enablenative.cfg" rootmenu submenu $"Boot manually""${three_dots_str}" { submenu_title process_option "${prefix}/osdetect.cfg" process_option "${prefix}/cfgextract.cfg" process_option "${prefix}/cfgdetect.cfg" process_option "${prefix}/menulstdetect.cfg" process_option "${prefix}/grubdetect.cfg" process_option "${prefix}/diskpartchainboot.cfg" process_option "${prefix}/autoiso.cfg" source "${prefix}/return.cfg" } submenu $"Extra GRUB2 functionality""${three_dots_str}" { submenu_title process_enable "${prefix}/enablelvm.cfg" process_enable "${prefix}/enableraid.cfg" process_enable "${prefix}/enableencrypted.cfg" process_enable "${prefix}/enablenative.cfg" process_enable "${prefix}/enableserial.cfg" process_enable "${prefix}/searchfloppy.cfg" process_enable "${prefix}/searchcdrom.cfg" process_enable "${prefix}/searchsgd.cfg" source "${prefix}/return.cfg" } menuentry $"Print devices/partitions" { # Set pager=1 so ls output doesn't scroll past the top of the screen # but restore $pager to its previous value when finished set oldpager="${pager}" set pager=1 ls -l set pager="${oldpager}" unset oldpager echo $"Press escape to return to the main menu" sleep --interruptible 9999 } menuentry $"Color ON/OFF" { if [ "$bwcolor" = 'yes' ]; then bwcolor=no else bwcolor=yes fi set_sgd_colors } submenu $"Exit""${three_dots_str}" { submenu_title process_option "${prefix}/halt.cfg" process_option "${prefix}/reboot.cfg" source "${prefix}/return.cfg" } # If it exists, source $prefix/sgd_custom.cfg. This follows the same idea as # grub-mkconfig generated grub.cfg files sourcing $prefix/custom.cfg, though # it's less needed here since one could add custom code to this file directly # whereas their distro might automatically overwrite /boot/grub/grub.cfg on # kernel upgrades. The main motivation for adding this was the vmtest script # which I use heavily during Super GRUB2 Disk development, but this feature # might also be useful to others. if [ -e "$prefix/sgd_custom.cfg" ]; then source "$prefix/sgd_custom.cfg" fi |
注意:如果安装升级的是ubuntu 20.04.1
,系统启动的时候,会出现error: symbol 'grub_calloc' not found
。
如下图:

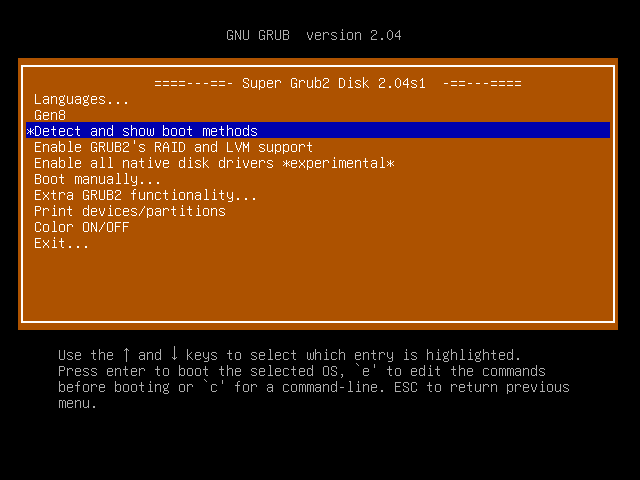

但是奇怪的是,如果在系统启动的时候选择Detect and show boot methods
,显示出的任何菜单,都可以正常启动系统,如下:
这个问题是因为ubuntu 20.04.1
系统使用的是新版本的grub2
引导系统,启动配置信息需要进行调整,修改我们创建的\boot\grub\Gen8.cfg
(Super GRUB2 Disk 2.02)或者\boot\grub\sgd\Gen8.cfg
(Super GRUB2 Disk 2.04),内容调整为如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 |
# Super Grub Disk - Gen8.cfg set option_title=$"Gen8" function run_option { echo "Starting Gen8 ..." #for uuid #search --set=root --fs-uuid 763A-9CB6 #for file insmod xfs search --set=root --file /boot/grub/grubenv configfile /boot/grub/grub.cfg } |
