FloatingActionButton浮动按钮动画效果实现

我们想实现一个跟知呼功能类似的悬浮按钮，点击后会展开相应的菜单。

1.FloatingActionButton

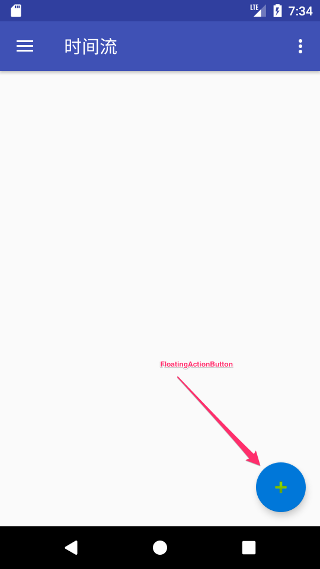

我们先来看一张图片，认识一下什么是FloatingActionButton:

FloatingActionButton一般浮现在右下角，是Material Design的一个控件。

使用Android Studio创建的新工程中，可以引入该控件：

compile 'com.android.support:design:26.+'

然后在布局文件中使用该控件：

<android.support.design.widget.FloatingActionButton
	android:id="@+id/fab"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:layout_gravity="bottom|end"
	android:layout_margin="@dimen/fab_margin"
	app:srcCompat="@android:drawable/ic_dialog_email" />

该控件是自带阴影效果的。

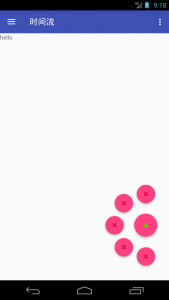

我们想实现下面的这样一个功能：

点击按钮，然后展开菜单。

2.展开菜单实现思路：

1.将要显示的菜单按钮都放在与Fab同一位置，然后设置为INVISIBLE不可见。

2.点击Fab的时候，将菜单按钮设置为可见，并且动过动画平移到各个位置。

3.在此点击Fab或者点击菜单之后，将菜单折叠回来，并设置为不可见。

3.展开菜单实现代码：

1.新建一个类:FloatingActionButtonContainerView，继承FrameLayout

我们先定义一些成员变量（下面的代码遇到不懂的再回来看看）：

private final static int INIT_SIZE = 5; /*默认的容器中的FloatingActionButton的数量*/

private static final int DO_ROTATE = 1;//旋转动画
private static final int RECOVER_ROTATE = -1;//恢复旋转之前的状态
private static final int UNFOLDING = 2;//菜单展开状态
private static final int FOLDING = 3;//菜单折叠状态

private int mWidth = 400;//viewGroup的宽
private int mHeight = 620;//ViewGroup的高
private int length = 200;//子view展开的距离
private int flag = FOLDING;//菜单展开与折叠的状态
private float mScale = 0.8f;//展开之后的缩放比例
private int mDuration = 400;//动画时长
private FloatingActionButton ctrlButton;//在Activity中显示的button

重写onMeasure()方法：

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    //测量子view的宽高 这是必不可少的  不然子view会没有宽高
    measureChildren(widthMeasureSpec,heightMeasureSpec);
    //设置该viewGroup的宽高
    setMeasuredDimension(mWidth,mHeight);
}

重写onLayout方法

在这个方法中，我们要做的是为子view设置布局位置：

@Override
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
	layoutCtrlButton();
	layoutExpandChildButton();
}

private void layoutCtrlButton(){
	//获取宽高
	int width = ctrlButton.getMeasuredWidth();
	int height = ctrlButton.getMeasuredHeight();
	//1：相对于父布局  控件的left
	//2：控件的top
	//3：右边缘的left
	//4：底部的top
	//所以后两个直接用left加上宽 以及 top加上height就好
	ctrlButton.layout(mWidth - width, (mHeight - height) / 2, mWidth, (mHeight - height) / 2 + height);
}

private void layoutExpandChildButton(){
	final int cCount = getChildCount();
	final int width = ctrlButton.getMeasuredWidth();
	final int height = ctrlButton.getMeasuredHeight();
	//设置子view的初始位置  与mainButton重合  并且设置为不可见
	for (int i = 1; i < cCount; i++) {
	    final View view = getChildAt(i);
	    view.layout(mWidth - width, (mHeight - height) / 2, mWidth, (mHeight - height) / 2 + height);
	    view.setVisibility(INVISIBLE);
	}
}

在onLayout()方法中，我们布置了ctrlButton的显示位置，设置在右边缘的中部。

ctrlButton的点击事件：

/**
* 设置控制按钮的点击事件
*
* @param view
*/
private void setCtrlButtonListener(final View view) {

	view.setOnClickListener(new OnClickListener() {
	    @Override
	    public void onClick(View v) {
		if (flag == FOLDING) {//折叠状态
		    final int cCount = FloatingActionButtonContainerView.this.getChildCount();
		    for (int i = 1; i < cCount; i++) {
		        View view = getChildAt(i);
		        view.setVisibility(VISIBLE);
		        //开始平移  第一个参数是view 第二个是角度
		        setTranslation(view, 180 / (cCount - 2) * (i - 1));
		    }
		    flag = UNFOLDING;//展开状态
		    //开始旋转
		    setRotateAnimation(view, DO_ROTATE);

		} else {
		    setBackTranslation();
		    flag = FOLDING;
		    //开始反向旋转 恢复原来的样子
		    setRotateAnimation(view, RECOVER_ROTATE);
		}
	    }
	});
}

我们设置一个flag来表示菜单的折叠状态，然后点击ctrlButton的时候做出相应的动画（展开菜单或者折叠菜单）。

平移动画：

我们这里使用的属性动画，也比较简单，大家可以学习学习属性动画。

public void setTranslation(View view,int angle){
    int x  = (int) (length*Math.sin(Math.toRadians(angle)));
    int y = (int) (length*Math.cos(Math.toRadians(angle)));

    ObjectAnimator tX = ObjectAnimator.ofFloat(view,"translationX",-x);
    ObjectAnimator tY = ObjectAnimator.ofFloat(view,"translationY",-y);
    ObjectAnimator alpha  = ObjectAnimator.ofFloat(view,"alpha",1);
    ObjectAnimator scaleX = ObjectAnimator.ofFloat(view,"scaleX",mScale);
    ObjectAnimator scaleY = ObjectAnimator.ofFloat(view,"scaleY",mScale);

    AnimatorSet set = new AnimatorSet();
    set.play(tX).with(tY).with(alpha);
    set.play(scaleX).with(scaleY).with(tX);
    set.setDuration(mDuration);
    set.setInterpolator(new AccelerateDecelerateInterpolator());
    set.start();
}

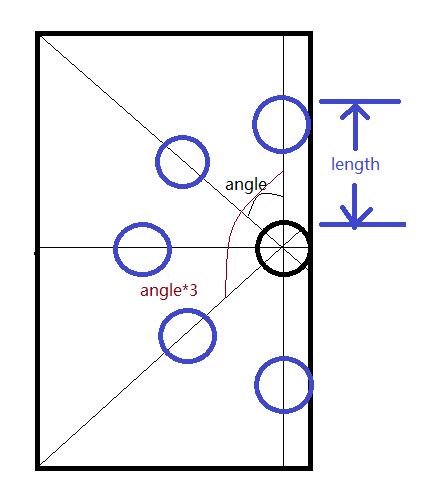

为了理解这个动画，我们要结合一张图：

通过length与angle计算出子view的位置，然后通过动画属性进行设置x与y的偏移量就好。

这样就可以实现点击ctrlButton然后展开菜单了。

折叠动画：

private void setBackTranslation(){
    int cCount =getChildCount();
    for (int i = 1; i < cCount; i++) {
        final View view = getChildAt(i);
        ObjectAnimator tX = ObjectAnimator.ofFloat(view,"translationX",0);
        ObjectAnimator tY = ObjectAnimator.ofFloat(view,"translationY",0);
        ObjectAnimator alpha  = ObjectAnimator.ofFloat(view,"alpha",0);//透明度 0为完全透明
        AnimatorSet set = new AnimatorSet(); //动画集合
        set.play(tX).with(tY).with(alpha);
        set.setDuration(mDuration); //持续时间
        set.setInterpolator(new AccelerateDecelerateInterpolator());
        set.start();
        //动画完成后 设置为不可见
        set.addListener(new AnimatorListenerAdapter() {
            @Override
            public void onAnimationEnd(Animator animation) {
                view.setVisibility(INVISIBLE);
            }
        });
    }
}

旋转动画：

public void setRotateAnimation(View view,int flag){
    ObjectAnimator rotate = null;
    if(flag==DO_ROTATE)
        rotate = ObjectAnimator.ofFloat(view,"rotation",135);
    else rotate = ObjectAnimator.ofFloat(view,"rotation",0);
    rotate.setDuration(mDuration);
    rotate.start();
}

缩放动画：

/**
 * 展开动画
 * @param view
 * @param angle
 */
public void setTranslation(View view,int angle){
    int x  = (int) (length*Math.sin(Math.toRadians(angle)));
    int y = (int) (length*Math.cos(Math.toRadians(angle)));
    Log.d("ICE","angle"+angle +"y:"+y);
    ObjectAnimator tX = ObjectAnimator.ofFloat(view,"translationX",-x);
    ObjectAnimator tY = ObjectAnimator.ofFloat(view,"translationY",-y);
    ObjectAnimator alpha  = ObjectAnimator.ofFloat(view,"alpha",1);
    ObjectAnimator scaleX = ObjectAnimator.ofFloat(view,"scaleX",mScale);
    ObjectAnimator scaleY = ObjectAnimator.ofFloat(view,"scaleY",mScale);

    AnimatorSet set = new AnimatorSet();
    set.play(tX).with(tY).with(alpha);
    set.play(scaleX).with(scaleY).with(tX);
    set.setDuration(mDuration);
    set.setInterpolator(new AccelerateDecelerateInterpolator());
    set.start();
}

点击子view执行子view的点击事件，并且折叠菜单。

/**
* 执行child的点击事件
*/
private void setChildButtonListener(final View view) {
	//设置点击时候执行点击事件并且缩回原来的位置
	view.setOnTouchListener(new OnTouchListener() {
	    int x,y;
	    @Override
	    public boolean onTouch(View v, MotionEvent event) {

		switch (event.getAction()){
		    case MotionEvent.ACTION_DOWN:
		        x = (int) event.getX();
		        y = (int) event.getY();
		        break;
		    case MotionEvent.ACTION_UP:
		        if((int)event.getX() == x && (int)event.getY()==y){
		            //如果手指点击时 与抬起时的x y 坐标相等 那么我们认为手指点了该view
		            setBackTranslation();  //折叠菜单
		            setRotateAnimation(ctrlButton,RECOVER_ROTATE); //旋转mainButton
		            flag = UNFOLDING;//设置为展开状态
		            //执行该view的点击事件
		            view.callOnClick();
		        }
		        break;
		}
		return true;
	    }
	});
}

我们不能够重写子view的onClickListener()，因为我们可以在Activity中写点击事件，如果在这里写了，就会覆盖点击事件了。所以我们用触摸监听来间接实现。
注意，这部分并不是必须这样写，有很多变通的方式，不必拘泥在这样的实现上。

完整的代码如下：

import android.animation.Animator;
import android.animation.AnimatorListenerAdapter;
import android.animation.AnimatorSet;
import android.animation.ObjectAnimator;
import android.content.Context;
import android.support.annotation.AttrRes;
import android.support.annotation.NonNull;
import android.support.annotation.Nullable;
import android.support.design.widget.FloatingActionButton;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.view.animation.AccelerateDecelerateInterpolator;
import android.widget.FrameLayout;

/**
 * Created by longsky on 17-8-7.
 */

public class FloatingActionButtonContainerView extends FrameLayout {
    private final static int INIT_SIZE = 5; /*默认的容器中的FloatingActionButton的数量*/

    private static final int DO_ROTATE = 1;//旋转动画
    private static final int RECOVER_ROTATE = -1;//恢复旋转之前的状态
    private static final int UNFOLDING = 2;//菜单展开状态
    private static final int FOLDING = 3;//菜单折叠状态

    private int mWidth = 400;//viewGroup的宽
    private int mHeight = 620;//ViewGroup的高
    private int length = 200;//子view展开的距离
    private int flag = FOLDING;//菜单展开与折叠的状态
    private float mScale = 0.8f;//展开之后的缩放比例
    private int mDuration = 400;//动画时长
    private FloatingActionButton ctrlButton;//在Activity中显示的button

    public FloatingActionButtonContainerView(@NonNull Context context, @Nullable AttributeSet attrs, @AttrRes int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        this.initContainerView();
    }

    public FloatingActionButtonContainerView(@NonNull Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        this.initContainerView();
    }

    private void initContainerView(){
        this.removeAllViews();
        setupCtrlButton();
        setContainerSize(INIT_SIZE);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        //测量子view的宽高 这是必不可少的 不然子view会没有宽高
        measureChildren(widthMeasureSpec, heightMeasureSpec);
        //设置该viewGroup的宽高
        setMeasuredDimension(mWidth, mHeight);
    }

    @Override
    protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
        layoutCtrlButton();
        layoutExpandChildButton();
    }

    private void layoutCtrlButton(){
        //获取宽高
        int width = ctrlButton.getMeasuredWidth();
        int height = ctrlButton.getMeasuredHeight();
        //1：相对于父布局  控件的left
        //2：控件的top
        //3：右边缘的left
        //4：底部的top
        //所以后两个直接用left加上宽 以及 top加上height就好
        ctrlButton.layout(mWidth - width, (mHeight - height) / 2, mWidth, (mHeight - height) / 2 + height);
    }

    private void layoutExpandChildButton(){
        final int cCount = getChildCount();
        final int width = ctrlButton.getMeasuredWidth();
        final int height = ctrlButton.getMeasuredHeight();
        //设置子view的初始位置  与mainButton重合  并且设置为不可见
        for (int i = 1; i < cCount; i++) {
            final View view = getChildAt(i);
            view.layout(mWidth - width, (mHeight - height) / 2, mWidth, (mHeight - height) / 2 + height);
            view.setVisibility(INVISIBLE);
        }
    }

    private void setupCtrlButton(){
        FrameLayout.LayoutParams lp = new FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, FrameLayout.LayoutParams.MATCH_PARENT);
        ctrlButton = new FloatingActionButton(this.getContext());
        ctrlButton.setImageResource(android.R.drawable.ic_input_add);
        //设置主按钮的点击事件
        setCtrlButtonListener(ctrlButton);
        this.addView(ctrlButton, lp);
    }

    public void setContainerSize(int size) {
        boolean reqLayout = false;
        final int childCount = this.getChildCount();
        final int expandChild = childCount - 1;
        if (size > expandChild) {
            for (int i = 0; i < (size - expandChild); i++) {
                FrameLayout.LayoutParams lp = new FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, FrameLayout.LayoutParams.MATCH_PARENT);
                FloatingActionButton btnFloatingAction = new FloatingActionButton(this.getContext());
                setChildButtonListener(btnFloatingAction);
                btnFloatingAction.setVisibility(View.INVISIBLE);
                btnFloatingAction.setImageResource(android.R.drawable.ic_delete);
                this.addView(btnFloatingAction, lp);
                reqLayout = true;
            }
        } else if (size < expandChild) {
            if (size < 0) {
                size = 0;
            }
            for (int i = 0; i < (expandChild - size); i++) {
                this.removeViewAt(this.getChildCount() - 1);
                reqLayout = true;
            }
        }
        if (reqLayout) {
            this.requestLayout();
        }
    }


    /**
     * 设置主按钮的点击事件
     *
     * @param view
     */
    private void setCtrlButtonListener(final View view) {

        view.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                if (flag == FOLDING) {//折叠状态
                    final int cCount = FloatingActionButtonContainerView.this.getChildCount();
                    for (int i = 1; i < cCount; i++) {
                        View view = getChildAt(i);
                        view.setVisibility(VISIBLE);
                        //开始平移  第一个参数是view 第二个是角度
                        setTranslation(view, 180 / (cCount - 2) * (i - 1));
                    }
                    flag = UNFOLDING;//展开状态
                    //开始旋转
                    setRotateAnimation(view, DO_ROTATE);

                } else {
                    setBackTranslation();
                    flag = FOLDING;
                    //开始反向旋转 恢复原来的样子
                    setRotateAnimation(view, RECOVER_ROTATE);
                }
            }
        });
    }

    public void setTranslation(View view,int angle){
        int x  = (int) (length*Math.sin(Math.toRadians(angle)));
        int y = (int) (length*Math.cos(Math.toRadians(angle)));
        ObjectAnimator tX = ObjectAnimator.ofFloat(view,"translationX",-x);
        ObjectAnimator tY = ObjectAnimator.ofFloat(view,"translationY",-y);
        ObjectAnimator alpha  = ObjectAnimator.ofFloat(view,"alpha",1);
        ObjectAnimator scaleX = ObjectAnimator.ofFloat(view,"scaleX",mScale);
        ObjectAnimator scaleY = ObjectAnimator.ofFloat(view,"scaleY",mScale);

        AnimatorSet set = new AnimatorSet();
        set.play(tX).with(tY).with(alpha);
        set.play(scaleX).with(scaleY).with(tX);
        set.setDuration(mDuration);
        set.setInterpolator(new AccelerateDecelerateInterpolator());
        set.start();
    }

    private void setBackTranslation(){
        int cCount =getChildCount();
        for (int i = 1; i < cCount; i++) {
            final View view = getChildAt(i);
            ObjectAnimator tX = ObjectAnimator.ofFloat(view,"translationX",0);
            ObjectAnimator tY = ObjectAnimator.ofFloat(view,"translationY",0);
            ObjectAnimator alpha  = ObjectAnimator.ofFloat(view,"alpha",0);//透明度 0为完全透明
            AnimatorSet set = new AnimatorSet(); //动画集合
            set.play(tX).with(tY).with(alpha);
            set.setDuration(mDuration); //持续时间
            set.setInterpolator(new AccelerateDecelerateInterpolator());
            set.start();
            //动画完成后 设置为不可见
            set.addListener(new AnimatorListenerAdapter() {
                @Override
                public void onAnimationEnd(Animator animation) {
                    view.setVisibility(INVISIBLE);
                }
            });
        }
    }

    public void setRotateAnimation(View view,int flag){
        ObjectAnimator rotate = null;
        if(flag==DO_ROTATE)
            rotate = ObjectAnimator.ofFloat(view,"rotation",135);
        else rotate = ObjectAnimator.ofFloat(view,"rotation",0);
        rotate.setDuration(mDuration);
        rotate.start();
    }


    /**
     * 执行child的点击事件
     */
    private void setChildButtonListener(final View view) {
        //设置点击时候执行点击事件并且缩回原来的位置
        view.setOnTouchListener(new OnTouchListener() {
            int x,y;
            @Override
            public boolean onTouch(View v, MotionEvent event) {

                switch (event.getAction()){
                    case MotionEvent.ACTION_DOWN:
                        x = (int) event.getX();
                        y = (int) event.getY();
                        break;
                    case MotionEvent.ACTION_UP:
                        if((int)event.getX() == x && (int)event.getY()==y){
                            //如果手指点击时 与抬起时的x y 坐标相等 那么我们认为手指点了该view
                            setBackTranslation();  //折叠菜单
                            setRotateAnimation(ctrlButton,RECOVER_ROTATE); //旋转mainButton
                            flag = UNFOLDING;//设置为展开状态
                            //执行该view的点击事件
                            view.callOnClick();
                        }
                        break;
                }
                return true;
            }
        });
    }

}

参考链接



发布者

默默

码农

发表回复

您的电子邮箱地址不会被公开。 必填项已用 * 标注
