Extensions hosted outside of the Chrome Web Store can only be installed by Linux users. This article describes how to package, host, and update .crx files from a personal server. If distributing an extension or theme solely through theChrome Web Store, consult Webstore Hosting and Updating.

Packaging

Extensions and themes are served as .crx files. When uploading through the Chrome Developer Dashboard , the dashboard creates the .crx file automatically. If published on a personal server, the .crx file will need to be created locally or downloaded from the Chrome Web Store.

Download .crx from the Chrome Web Store

If an extension is hosted on the Chrome Web Store, the .crx file can be downloaded from the Developer Dashboard. Locate the extension under "Your Listings" and click on "More info". In the popup window, click the blue main.crx link to download it. The downloaded file can be hosted on a personal server. This is the most secure way to host an extension locally as the contents of the extension will be signed by the Chrome Web Store. This helps detect potential attacks and tampering.

Create .crx locally

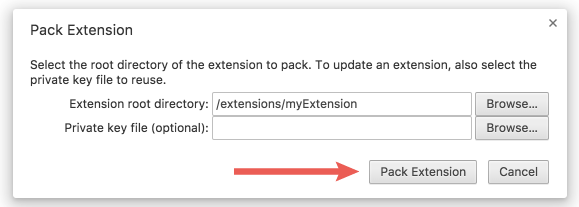

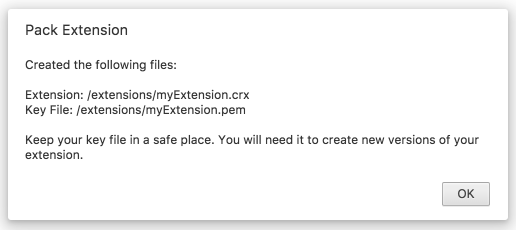

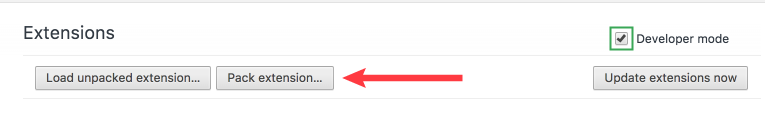

Extension directories are converted to .crx files at the Extensions Management Page. Navigate to chrome://extensions/ in the ominibox, or click on the Chrome menu, hover over "More Tools" then select "Extensions". On the Extensions Management Page, enable "Developer mode" by checking the box in the top right-hand corner and select the Pack extension... button. Specify the path to the extension’s folder in the Extension root directory field then click the Pack Extensionbutton. Ignore the Private key field for a first-time package. Chrome will create two files, a .crx file and a .pem file, which contains the extension’s private key. Do not lose the private key! Keep the .pem file in a secret and secure place; it will be needed to update the extension.

Update a .crx package

Update an extension's .crx file by increasing the version number in manifest.json.

{
...
"version" : "1.5",
...
}



{
...
"version" : "1.6",
...
}

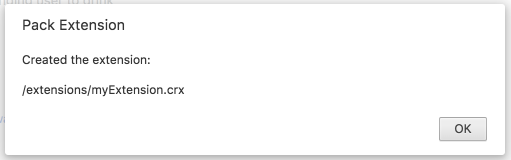

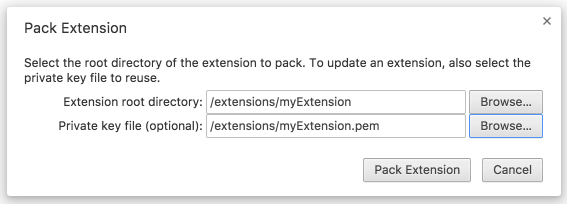

Return to the Extensions Management Page and click the Pack extension... button. Specify the path to the extensions directory and the location of private key. The page will provide the path for the updated packaged extension.

Package through Command Line

Package extensions in the command line by invoking chrome.exe. Use the --pack-extension flag to specify the location of the extension's folder and the --pack-extension-key flag to specify the location of the extension's private key file.

Hosting

A server that hosts.crxfiles must use appropriate HTTP headers to allow users to install the extension by clicking a link. Google Chrome considers a file to be installable if either of the following is true:

  • The file has the content typeapplication/x-chrome-extension
  • The file suffix is.crxand both of the following are true:
    • The file is not served with the HTTP headerX-Content-Type-Options: nosniff
    • The file is served with one of the following content types:
      • empty string
      • "text/plain"
      • "application/octet-stream"
      • "unknown/unknown"
      • "application/unknown"
      • "*/*"

The most common reason for failing to recognize an installable file is that the server sends the header X-Content-Type-Options: nosniff. The second most common reason is that the server sends an unknown content type—one that isn't in the previous list. To fix an HTTP header issue, either change the configuration of the server or try hosting the .crx file at another server.

Updating

Every few hours, the browser checks installed extensions for an update URL. For each one, it makes a request to that URL looking for an update manifest XML file.

  • The content returned by an update check is an update manifest XML document listing the latest version of an extension.

If the update manifest mentions a version that is more recent than what is installed, the browser downloads and installs the new version. As with manual updates, the new .crx file must be signed with the same private key as the currently installed version.

Note: In order to maintain user privacy, Google Chrome does not send any Cookie headers with autoupdate manifest requests, and ignores any Set-Cookie headers in the responses to those requests.

Update URL

Extensions hosted on servers outside of the Chrome Webstore must include the update_url field in theirmanifest.json file.

{
"name": "My extension",
...
"update_url":"https://myhost.com/mytestextension/updates.xml",
...
}

Update manifest

The update manifest returned by the server should be an XML document.

<? xml version='1.0' encoding='UTF-8' ?>
<gupdate xmlns='https://www.google.com/update2/response' protocol='2.0'>
<app appid='aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'>
<updatecheck codebase='https://myhost.com/mytestextension/mte_v2.crx' version='2.0'/>
</app>
</gupdate>

This XML format is borrowed from that used by Omaha, Google's update infrastructure. The extensions system uses the following attributes for the <app> and <updatecheck> elements of the update manifest:

appid The extension ID is generated based on a hash of the public key, as described in packaging. An extension's ID is displayed on the Extensions Managment Page
codebase An HTTPS URL to the .crx file.
version Used by the client to determine whether it should download the .crx file specified by codebase. It should match the value of "version" in the .crx file's manifest.json file.

The update manifest XML file may contain information about multiple extensions by including multiple <app> elements.

Testing

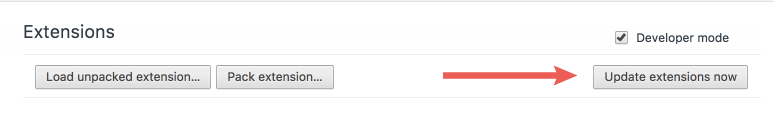

The default update check frequency is several hours, but an update can be forced using the Update extensions now button on the Extensions Management Page. Another option is to use the --extensions-update-frequency command-line flag to set a more frequent interval in seconds. The follwoing command will make Google Chrome run checks every 45 seconds.

chrome.exe --extensions-update-frequency=45

This will start checks for all installed extensions.

Advanced usage: request parameters

The basic autoupdate mechanism is designed to make the server-side work as easy as just dropping a static XML file onto any plain web server, such as Apache, and updating that XML file as new extension versions are released. Developers hosting multiple extensions may check request parameters, which indicate the extension ID and version in the update request. Including these paramaters allow extensions to update from the same URL running dynamic server-side code instead of a static XML file. The format of the request parameters is:

Where<extension_data>is a URL-encoded string of the format:

For example, two extensions point to the same update URL (https://test.com/extension_updates.php):

  • Extension 1
    • ID: "aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa"
    • Version: "1.1"
  • Extension 2
    • ID: "bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb"
    • Version: "0.4"

The request to update each individual extension would be,

and

Multiple extensions can be listed in a single request for each unique update URL. For the above example, if a user has both of the extensions installed, then the two requests are merged into a single request:

If the number of installed extensions using the same update URL is large enough that a GET request URL is too long (over 2000 characters or so), the update check issues additional GET requests as necessary.

Advanced usage: minimum browser version

As more APIs are added to the extensions system, an updated version of an extension that will work only with newer versions of the browser may be released. While Google Chrome itself is autoupdated, it can take a few days before the majority of the user base has updated to any given new release. To ensure that a given update will apply only to Google Chrome versions at or higher than a specific version, add the "prodversionmin" attribute to the <app> element in the update response.

<?xml version='1.0' encoding='UTF-8'?>
<gupdate xmlns='http://www.google.com/update2/response' protocol='2.0'>
<app appid='aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'>
<updatecheck codebase='http://myhost.com/mytestextension/mte_v2.crx' version='2.0' prodversionmin='3.0.193.0'/>
</app>
</gupdate>

This would ensure that users would autoupdate to version 2 only if they are running Google Chrome 3.0.193.0 or greater.
