【玩转ESP32】ESP32串口使用

1、ESP32串口

ESP32芯片有三个UART控制器(UART0, UART1和UART2)，其中UART0（GPIO3用于U0RXD，GPIO1用于U0TXD）用作下载、调试串口，引脚不可改变；

UART1和UART2的引脚是可以设置的。 UART1默认引脚是GPIO9用作U1RXD，GPIO10用作U1TXD，但是这两个引脚也是用于外接flash的，因此在使用UART1的时候需要设置其他引脚；

UART2默认引脚是GPIO16用作U2RXD，GPIO17用作U2TXD。

2、API

在components/driver/include/driver/uart.h中可以查看api；

在examples/peripherals/uart中也可以参考官方的各种串口例程。

2.1、安装uart驱动

esp_err_t uart_driver_install(uart_port_t uart_num, int rx_buffer_size, int tx_buffer_size, int queue_size, QueueHandle_t* uart_queue, int intr_alloc_flags);

1	esp_err_t uart_driver_install(uart_port_t uart_num, int rx_buffer_size, int tx_buffer_size, int queue_size, QueueHandle_t* uart_queue, int intr_alloc_flags);

这里要注意参数：uart_queue属于freertos里面的队列句柄，在这里表示用于指示来自串口底层中断的队列消息。

2.2、uart参数配置

esp_err_t uart_param_config(uart_port_t uart_num, const uart_config_t *uart_config);

1	esp_err_t uart_param_config(uart_port_t uart_num, const uart_config_t *uart_config);

2.3、接收阈值设置

esp_err_t uart_set_rx_full_threshold(uart_port_t uart_num, int threshold);

1	esp_err_t uart_set_rx_full_threshold(uart_port_t uart_num, int threshold);

2.4、串口引脚设置

esp_err_t uart_set_pin(uart_port_t uart_num, int tx_io_num, int rx_io_num, int rts_io_num, int cts_io_num);

1	esp_err_t uart_set_pin(uart_port_t uart_num, int tx_io_num, int rx_io_num, int rts_io_num, int cts_io_num);

2.5、从接收缓冲区读取数据

int uart_read_bytes(uart_port_t uart_num, uint8_t* buf, uint32_t length, TickType_t ticks_to_wait);

1	int uart_read_bytes(uart_port_t uart_num, uint8_t* buf, uint32_t length, TickType_t ticks_to_wait);

2.6、数据写入发送缓冲区

int uart_write_bytes(uart_port_t uart_num, const char* src, size_t size);

1	int uart_write_bytes(uart_port_t uart_num, const char* src, size_t size);

3、代码实现

3.1、参数定义

#define EX_UART_NUM UART_NUM_1  //串口1

#define TXD_PIN    (GPIO_NUM_17) //txd使用gpio17
#define RXD_PIN    (GPIO_NUM_16) //rxd使用gpio16

#define BUF_SIZE (128)   //缓冲区定义
static QueueHandle_t uart_queue; //队列句柄
static uint8_t  uartbuf[BUF_SIZE];

#define EX_UART_NUM UART_NUM_1 //串口1

#define TXD_PIN (GPIO_NUM_17) //txd使用gpio17

#define RXD_PIN (GPIO_NUM_16) //rxd使用gpio16

#define BUF_SIZE (128) //缓冲区定义

static QueueHandle_t uart_queue; //队列句柄

static uint8_t uartbuf[BUF_SIZE];

3.2、串口初始化

void uart_comm_init(void)
{
    /* Configure parameters of an UART driver,
     * communication pins and install the driver */
    uart_config_t uart_config = {
        .baud_rate = 115200,
        .data_bits = UART_DATA_8_BITS,
        .parity = UART_PARITY_DISABLE,
        .stop_bits = UART_STOP_BITS_1,
        .flow_ctrl = UART_HW_FLOWCTRL_DISABLE,
        .source_clk = UART_SCLK_APB,
    };
    //Install UART driver, and get the queue.
    uart_driver_install(EX_UART_NUM, BUF_SIZE * 2, BUF_SIZE * 2, 20, &uart_queue, 0);
    uart_param_config(EX_UART_NUM, &uart_config);
    uart_set_rx_full_threshold(EX_UART_NUM,126);

    //Set UART pins (using UART0 default pins ie no changes.)
    uart_set_pin(EX_UART_NUM, TXD_PIN, RXD_PIN, UART_PIN_NO_CHANGE, UART_PIN_NO_CHANGE);

    //Create a task to handler UART event from ISR
    xTaskCreate(uart_event_task, "uart_event_task", 2048, NULL, 12, NULL); //创建串口任务
}

void uart_comm_init(void)

{

/* Configure parameters of an UART driver,

* communication pins and install the driver */

uart_config_t uart_config = {

.baud_rate = 115200,

.data_bits = UART_DATA_8_BITS,

.parity = UART_PARITY_DISABLE,

.stop_bits = UART_STOP_BITS_1,

.flow_ctrl = UART_HW_FLOWCTRL_DISABLE,

.source_clk = UART_SCLK_APB,

};

//Install UART driver, and get the queue.

uart_driver_install(EX_UART_NUM, BUF_SIZE * 2, BUF_SIZE * 2, 20, &uart_queue, 0);

uart_param_config(EX_UART_NUM, &uart_config);

uart_set_rx_full_threshold(EX_UART_NUM,126);

//Set UART pins (using UART0 default pins ie no changes.)

uart_set_pin(EX_UART_NUM, TXD_PIN, RXD_PIN, UART_PIN_NO_CHANGE, UART_PIN_NO_CHANGE);

//Create a task to handler UART event from ISR

xTaskCreate(uart_event_task, "uart_event_task", 2048, NULL, 12, NULL); //创建串口任务

}

3.3、串口任务函数

static void uart_event_task(void *pvParameters)
{
    uart_event_t event;
    for(;;) {
        //阻塞接收串口队列，
        //这个队列在底层发送，用户只需在应用层接收即可
        if(xQueueReceive(uart_queue, (void * )&event, (portTickType)portMAX_DELAY)) {
            switch(event.type) {//各种串口事件
                case UART_DATA:
                    ESP_LOGI(TAG, "[UART DATA]: %d", event.size);
                    uart_read_bytes(EX_UART_NUM, uartbuf, event.size, portMAX_DELAY); //阻塞接收
                    ESP_LOGI(TAG, "[DATA EVT]:");
                    uart_write_bytes(EX_UART_NUM, uartbuf, event.size);//原样发送
                    break;
                //Event of HW FIFO overflow detected
                case UART_FIFO_OVF: //硬件fifo溢出
                    ESP_LOGI(TAG, "hw fifo overflow");
                    // If fifo overflow happened, you should consider adding flow control for your application.
                    // The ISR has already reset the rx FIFO,
                    // As an example, we directly flush the rx buffer here in order to read more data.
                    uart_flush_input(EX_UART_NUM);
                    xQueueReset(uart_queue);
                    break;
                //Event of UART ring buffer full
                case UART_BUFFER_FULL: //环形缓冲区满
                    ESP_LOGI(TAG, "ring buffer full");
                    // If buffer full happened, you should consider encreasing your buffer size
                    // As an example, we directly flush the rx buffer here in order to read more data.
                    uart_flush_input(EX_UART_NUM);
                    xQueueReset(uart_queue);
                    break;
                //Event of UART RX break detected
                case UART_BREAK:
                    ESP_LOGI(TAG, "uart rx break");
                    break;
                //Event of UART parity check error
                case UART_PARITY_ERR:
                    ESP_LOGI(TAG, "uart parity error");
                    break;
                //Event of UART frame error
                case UART_FRAME_ERR:
                    ESP_LOGI(TAG, "uart frame error");
                    break;
                //UART_PATTERN_DET
                case UART_PATTERN_DET:
                    break;
                //Others
                default:
                    ESP_LOGI(TAG, "uart event type: %d", event.type);
                    break;
            }
        }
    }
    vTaskDelete(NULL);
}

static void uart_event_task(void *pvParameters)

{

uart_event_t event;

for(;;) {

//阻塞接收串口队列，

//这个队列在底层发送，用户只需在应用层接收即可

if(xQueueReceive(uart_queue, (void * )&event, (portTickType)portMAX_DELAY)) {

switch(event.type) {//各种串口事件

case UART_DATA:

ESP_LOGI(TAG, "[UART DATA]: %d", event.size);

uart_read_bytes(EX_UART_NUM, uartbuf, event.size, portMAX_DELAY); //阻塞接收

ESP_LOGI(TAG, "[DATA EVT]:");

uart_write_bytes(EX_UART_NUM, uartbuf, event.size);//原样发送

break;

//Event of HW FIFO overflow detected

case UART_FIFO_OVF: //硬件fifo溢出

ESP_LOGI(TAG, "hw fifo overflow");

// If fifo overflow happened, you should consider adding flow control for your application.

// The ISR has already reset the rx FIFO,

// As an example, we directly flush the rx buffer here in order to read more data.

uart_flush_input(EX_UART_NUM);

xQueueReset(uart_queue);

break;

//Event of UART ring buffer full

case UART_BUFFER_FULL: //环形缓冲区满

ESP_LOGI(TAG, "ring buffer full");

// If buffer full happened, you should consider encreasing your buffer size

// As an example, we directly flush the rx buffer here in order to read more data.

uart_flush_input(EX_UART_NUM);

xQueueReset(uart_queue);

break;

//Event of UART RX break detected

case UART_BREAK:

ESP_LOGI(TAG, "uart rx break");

break;

//Event of UART parity check error

case UART_PARITY_ERR:

ESP_LOGI(TAG, "uart parity error");

break;

//Event of UART frame error

case UART_FRAME_ERR:

ESP_LOGI(TAG, "uart frame error");

break;

//UART_PATTERN_DET

case UART_PATTERN_DET:

break;

//Others

default:

ESP_LOGI(TAG, "uart event type: %d", event.type);

break;

}

vTaskDelete(NULL);

}

4、使用总结

初始化串口参数，（队列指针、缓冲区、引脚等）；
任务中阻塞等待串口队列。

如何实现 ESP32 固件的 OTA 在线升级更新

1、背景

在实际产品开发过程中，在线升级可以远程解决产品软件开发引入的问题，更好地满足用户需求。

2、OTA 简介

OTA（空中）更新是使用 Wi-Fi 连接而不是串行端口将固件加载到 ESP 模块的过程。

2.1、ESP32 的 OTA 升级有三种方式：

Arduino IDE：主要用于软件开发阶段，实现不接线固件烧写
Web Browser：通过 Web 浏览器手动提供应用程序更新模块
HTTP Server：自动使用http服务器 - 针对产品应用

在三种升级情况下，必须通过串行端口完成第一个固件上传。

OTA 进程没有强加的安全性，需要确保开发人员只能从合法/受信任的来源获得更新。更新完成后，模块将重新启动，并执行新的代码。开发人员应确保在模块上运行的应用程序以安全的方式关闭并重新启动。

2.2、保密性 Security

模块必须以无线方式显示，以便通过新的草图进行更新。这使得模块被强行入侵并加载了其他代码。为了减少被黑客入侵的可能性，请考虑使用密码保护您的上传，选择某些OTA端口等。

可以提高安全性的 ArduinoOTA 库接口：

void setPort(uint16_t port);
void setHostname(const char* hostname);
void setPassword(const char* password);

void setPort(uint16_t port);

void setHostname(const char* hostname);

void setPassword(const char* password);

void onStart(OTA_CALLBACK(fn));
void onEnd(OTA_CALLBACK(fn));
void onProgress(OTA_CALLBACK_PROGRESS(fn));
void onError(OTA_CALLBACK_ERROR (fn));

void onStart(OTA_CALLBACK(fn));

void onEnd(OTA_CALLBACK(fn));

void onProgress(OTA_CALLBACK_PROGRESS(fn));

void onError(OTA_CALLBACK_ERROR (fn));

已经内置了某些保护功能，不需要开发人员进行任何其他编码。ArduinoOTA和espota.py使用Digest-MD5来验证上传。使用MD5校验和，在ESP端验证传输数据的完整性。

2.3、OTA 升级策略 - 针对 HTTP

ESP32 连接 HTTP 服务器，发送请求 Get 升级固件；每次读取1KB固件数据，写入Flash。

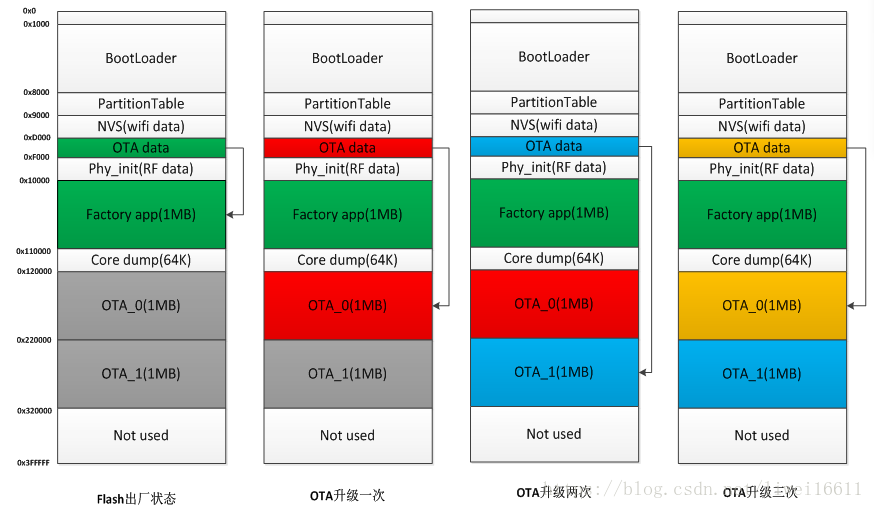

ESP32 SPI Flash 内有与升级相关的（至少）四个分区：OTA data、Factory App、OTA_0、OTA_1。其中 FactoryApp 内存有出厂时的默认固件。

首次进行 OTA 升级时，OTA Demo 向 OTA_0 分区烧录目标固件，并在烧录完成后，更新 OTA data 分区数据并重启。

系统重启时获取 OTA data 分区数据进行计算，决定此后加载 OTA_0 分区的固件执行（而不是默认的 Factory App 分区内的固件），从而实现升级。

同理，若某次升级后 ESP32 已经在执行 OTA_0 内的固件，此时再升级时 OTA Demo 就会向 OTA_1 分区写入目标固件。再次启动后，执行 OTA_1 分区实现升级。以此类推，升级的目标固件始终在 OTA_0、OTA_1 两个分区之间交互烧录，不会影响到出厂时的 Factory App 固件。

3、OTA 实例解析

3.1、Arduino IDE方案固件更新

从 Arduino IDE 无线上传模块适用于以下典型场景：

在固件开发过程中，通过串行加载更快的替代方案 - 用于更新少量模块，只有模块在与 Arduino IDE 的计算机相同的网络上可用。

参考实例：

#include <WiFi.h>
#include <ESPmDNS.h>
#include <WiFiUdp.h>
#include <ArduinoOTA.h>

const char* ssid = "..........";
const char* password = "..........";

void setup() {
  Serial.begin(115200);
  Serial.println("Booting");
  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, password);
  while (WiFi.waitForConnectResult() != WL_CONNECTED) {
    Serial.println("Connection Failed! Rebooting...");
    delay(5000);
    ESP.restart();
  }

  // Port defaults to 3232
  // ArduinoOTA.setPort(3232);

  // Hostname defaults to esp3232-[MAC]
  // ArduinoOTA.setHostname("myesp32");

  // No authentication by default
  // ArduinoOTA.setPassword("admin");

  // Password can be set with it's md5 value as well
  // MD5(admin) = 21232f297a57a5a743894a0e4a801fc3
  // ArduinoOTA.setPasswordHash("21232f297a57a5a743894a0e4a801fc3");

  ArduinoOTA
    .onStart([]() {
      String type;
      if (ArduinoOTA.getCommand() == U_FLASH)
        type = "sketch";
      else // U_SPIFFS
        type = "filesystem";

      // NOTE: if updating SPIFFS this would be the place to unmount SPIFFS using SPIFFS.end()
      Serial.println("Start updating " + type);
    })
    .onEnd([]() {
      Serial.println("\nEnd");
    })
    .onProgress([](unsigned int progress, unsigned int total) {
      Serial.printf("Progress: %u%%\r", (progress / (total / 100)));
    })
    .onError([](ota_error_t error) {
      Serial.printf("Error[%u]: ", error);
      if (error == OTA_AUTH_ERROR) Serial.println("Auth Failed");
      else if (error == OTA_BEGIN_ERROR) Serial.println("Begin Failed");
      else if (error == OTA_CONNECT_ERROR) Serial.println("Connect Failed");
      else if (error == OTA_RECEIVE_ERROR) Serial.println("Receive Failed");
      else if (error == OTA_END_ERROR) Serial.println("End Failed");
    });

  ArduinoOTA.begin();

  Serial.println("Ready");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  ArduinoOTA.handle();
}

#include <WiFi.h>

#include <ESPmDNS.h>

#include <WiFiUdp.h>

#include <ArduinoOTA.h>

const char* ssid = "..........";

const char* password = "..........";

void setup() {

Serial.begin(115200);

Serial.println("Booting");

WiFi.mode(WIFI_STA);

WiFi.begin(ssid, password);

while (WiFi.waitForConnectResult() != WL_CONNECTED) {

Serial.println("Connection Failed! Rebooting...");

delay(5000);

ESP.restart();

}

// Port defaults to 3232

// ArduinoOTA.setPort(3232);

// Hostname defaults to esp3232-[MAC]

// ArduinoOTA.setHostname("myesp32");

// No authentication by default

// ArduinoOTA.setPassword("admin");

// Password can be set with it's md5 value as well

// MD5(admin) = 21232f297a57a5a743894a0e4a801fc3

// ArduinoOTA.setPasswordHash("21232f297a57a5a743894a0e4a801fc3");

ArduinoOTA

.onStart([]() {

String type;

if (ArduinoOTA.getCommand() == U_FLASH)

type = "sketch";

else // U_SPIFFS

type = "filesystem";

// NOTE: if updating SPIFFS this would be the place to unmount SPIFFS using SPIFFS.end()

Serial.println("Start updating " + type);

})

.onEnd([]() {

Serial.println("\nEnd");

})

.onProgress([](unsigned int progress, unsigned int total) {

Serial.printf("Progress: %u%%\r", (progress / (total / 100)));

})

.onError([](ota_error_t error) {

Serial.printf("Error[%u]: ", error);

if (error == OTA_AUTH_ERROR) Serial.println("Auth Failed");

else if (error == OTA_BEGIN_ERROR) Serial.println("Begin Failed");

else if (error == OTA_CONNECT_ERROR) Serial.println("Connect Failed");

else if (error == OTA_RECEIVE_ERROR) Serial.println("Receive Failed");

else if (error == OTA_END_ERROR) Serial.println("End Failed");

});

ArduinoOTA.begin();

Serial.println("Ready");

Serial.print("IP address: ");

Serial.println(WiFi.localIP());

}

void loop() {

ArduinoOTA.handle();

}

3.2、Web Browser 方案固件更新

该方案使用场景：

直接从 Arduino IDE 加载是不方便或不可能的

用户无法从外部更新服务器公开 OTA 的模块

在设置更新服务器不可行时，将部署后的更新提供给少量模块

参考实例：

#include <WiFi.h>
#include <WiFiClient.h>
#include <WebServer.h>
#include <ESPmDNS.h>
#include <Update.h>

const char* host = "esp32";
const char* ssid = "xxx";
const char* password = "xxxx";

WebServer server(80);

/*
 * Login page
 */

const char* loginIndex =
 "<form name='loginForm'>"
    "<table width='20%' bgcolor='A09F9F' align='center'>"
        "<tr>"
            "<td colspan=2>"
                "<center><font size=4><b>ESP32 Login Page</b></font></center>"
                "<br>"
            "</td>"
            "<br>"
            "<br>"
        "</tr>"
        "<td>Username:</td>"
        "<td><input type='text' size=25 name='userid'><br></td>"
        "</tr>"
        "<br>"
        "<br>"
        "<tr>"
            "<td>Password:</td>"
            "<td><input type='Password' size=25 name='pwd'><br></td>"
            "<br>"
            "<br>"
        "</tr>"
        "<tr>"
            "<td><input type='submit' onclick='check(this.form)' value='Login'></td>"
        "</tr>"
    "</table>"
"</form>"
"<script>"
    "function check(form)"
    "{"
    "if(form.userid.value=='admin' && form.pwd.value=='admin')"
    "{"
    "window.open('/serverIndex')"
    "}"
    "else"
    "{"
    " alert('Error Password or Username')/*displays error message*/"
    "}"
    "}"
"</script>";

/*
 * Server Index Page
 */

const char* serverIndex =
"<script src='https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js'></script>"
"<form method='POST' action='#' enctype='multipart/form-data' id='upload_form'>"
   "<input type='file' name='update'>"
        "<input type='submit' value='Update'>"
    "</form>"
 "<div id='prg'>progress: 0%</div>"
 "<script>"
  "$('form').submit(function(e){"
  "e.preventDefault();"
  "var form = $('#upload_form')[0];"
  "var data = new FormData(form);"
  " $.ajax({"
  "url: '/update',"
  "type: 'POST',"
  "data: data,"
  "contentType: false,"
  "processData:false,"
  "xhr: function() {"
  "var xhr = new window.XMLHttpRequest();"
  "xhr.upload.addEventListener('progress', function(evt) {"
  "if (evt.lengthComputable) {"
  "var per = evt.loaded / evt.total;"
  "$('#prg').html('progress: ' + Math.round(per*100) + '%');"
  "}"
  "}, false);"
  "return xhr;"
  "},"
  "success:function(d, s) {"
  "console.log('success!')"
 "},"
 "error: function (a, b, c) {"
 "}"
 "});"
 "});"
 "</script>";

/*
 * setup function
 */
void setup(void) {
  Serial.begin(115200);

  // Connect to WiFi network
  WiFi.begin(ssid, password);
  Serial.println("");

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected to ");
  Serial.println(ssid);
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());

  /*use mdns for host name resolution*/
  if (!MDNS.begin(host)) { //http://esp32.local
    Serial.println("Error setting up MDNS responder!");
    while (1) {
      delay(1000);
    }
  }
  Serial.println("mDNS responder started");
  /*return index page which is stored in serverIndex */
  server.on("/", HTTP_GET, []() {
    server.sendHeader("Connection", "close");
    server.send(200, "text/html", loginIndex);
  });
  server.on("/serverIndex", HTTP_GET, []() {
    server.sendHeader("Connection", "close");
    server.send(200, "text/html", serverIndex);
  });
  /*handling uploading firmware file */
  server.on("/update", HTTP_POST, []() {
    server.sendHeader("Connection", "close");
    server.send(200, "text/plain", (Update.hasError()) ? "FAIL" : "OK");
    ESP.restart();
  }, []() {
    HTTPUpload& upload = server.upload();
    if (upload.status == UPLOAD_FILE_START) {
      Serial.printf("Update: %s\n", upload.filename.c_str());
      if (!Update.begin(UPDATE_SIZE_UNKNOWN)) { //start with max available size
        Update.printError(Serial);
      }
    } else if (upload.status == UPLOAD_FILE_WRITE) {
      /* flashing firmware to ESP*/
      if (Update.write(upload.buf, upload.currentSize) != upload.currentSize) {
        Update.printError(Serial);
      }
    } else if (upload.status == UPLOAD_FILE_END) {
      if (Update.end(true)) { //true to set the size to the current progress
        Serial.printf("Update Success: %u\nRebooting...\n", upload.totalSize);
      } else {
        Update.printError(Serial);
      }
    }
  });
  server.begin();
}

void loop(void) {
  server.handleClient();
  delay(1);
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

#include <WiFi.h>

#include <WiFiClient.h>

#include <WebServer.h>

#include <ESPmDNS.h>

#include <Update.h>

const char* host = "esp32";

const char* ssid = "xxx";

const char* password = "xxxx";

WebServer server(80);

* Login page

const char* loginIndex =

"<form name='loginForm'>"

"<table width='20%' bgcolor='A09F9F' align='center'>"

"<tr>"

"<td colspan=2>"

"<center><font size=4><b>ESP32 Login Page</b></font></center>"

"<br>"

"</td>"

"<br>"

"</tr>"

"<td>Username:</td>"

"<td><input type='text' size=25 name='userid'><br></td>"

"</tr>"

"<br>"

"<tr>"

"<td>Password:</td>"

"<td><input type='Password' size=25 name='pwd'><br></td>"

"<br>"

"</tr>"

"<tr>"

"<td><input type='submit' onclick='check(this.form)' value='Login'></td>"

"</tr>"

"</table>"

"</form>"

"<script>"

"function check(form)"

"{"

"if(form.userid.value=='admin' && form.pwd.value=='admin')"

"{"

"window.open('/serverIndex')"

"}"

"else"

"{"

" alert('Error Password or Username')/*displays error message*/"

"}"

"</script>";

* Server Index Page

const char* serverIndex =

"<script src='https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js'></script>"

"<form method='POST' action='#' enctype='multipart/form-data' id='upload_form'>"

"<input type='file' name='update'>"

"<input type='submit' value='Update'>"

"</form>"

"<div id='prg'>progress: 0%</div>"

"<script>"

"$('form').submit(function(e){"

"e.preventDefault();"

"var form = $('#upload_form')[0];"

"var data = new FormData(form);"

" $.ajax({"

"url: '/update',"

"type: 'POST',"

"data: data,"

"contentType: false,"

"processData:false,"

"xhr: function() {"

"var xhr = new window.XMLHttpRequest();"

"xhr.upload.addEventListener('progress', function(evt) {"

"if (evt.lengthComputable) {"

"var per = evt.loaded / evt.total;"

"$('#prg').html('progress: ' + Math.round(per*100) + '%');"

"}"

"}, false);"

"return xhr;"

"},"

"success:function(d, s) {"

"console.log('success!')"

"},"

"error: function (a, b, c) {"

"}"

"});"

"</script>";

* setup function

void setup(void) {

Serial.begin(115200);

// Connect to WiFi network

WiFi.begin(ssid, password);

Serial.println("");

// Wait for connection

while (WiFi.status() != WL_CONNECTED) {

delay(500);

Serial.print(".");

}

Serial.println("");

Serial.print("Connected to ");

Serial.println(ssid);

Serial.print("IP address: ");

Serial.println(WiFi.localIP());

/*use mdns for host name resolution*/

if (!MDNS.begin(host)) { //http://esp32.local

Serial.println("Error setting up MDNS responder!");

while (1) {

delay(1000);

}

Serial.println("mDNS responder started");

/*return index page which is stored in serverIndex */

server.on("/", HTTP_GET, []() {

server.sendHeader("Connection", "close");

server.send(200, "text/html", loginIndex);

});

server.on("/serverIndex", HTTP_GET, []() {

server.sendHeader("Connection", "close");

server.send(200, "text/html", serverIndex);

});

/*handling uploading firmware file */

server.on("/update", HTTP_POST, []() {

server.sendHeader("Connection", "close");

server.send(200, "text/plain", (Update.hasError()) ? "FAIL" : "OK");

ESP.restart();

}, []() {

HTTPUpload& upload = server.upload();

if (upload.status == UPLOAD_FILE_START) {

Serial.printf("Update: %s\n", upload.filename.c_str());

if (!Update.begin(UPDATE_SIZE_UNKNOWN)) { //start with max available size

Update.printError(Serial);

}

} else if (upload.status == UPLOAD_FILE_WRITE) {

/* flashing firmware to ESP*/

if (Update.write(upload.buf, upload.currentSize) != upload.currentSize) {

Update.printError(Serial);

}

} else if (upload.status == UPLOAD_FILE_END) {

if (Update.end(true)) { //true to set the size to the current progress

Serial.printf("Update Success: %u\nRebooting...\n", upload.totalSize);

} else {

Update.printError(Serial);

}

});

server.begin();

}

void loop(void) {

server.handleClient();

delay(1);

}

3.3、HTTP 服务器实现更新

ESPhttpUpdate 类可以检查更新并从 HTTP Web 服务器下载二进制文件。可以从网络或 Internet 上的每个 IP 或域名地址下载更新，主要应用于远程服务器更新升级。

参考实例：

/**
   AWS S3 OTA Update
   Date: 14th June 2017
   Author: Arvind Ravulavaru <https://github.com/arvindr21>
   Purpose: Perform an OTA update from a bin located in Amazon S3 (HTTP Only)

   Upload:
   Step 1 : Download the sample bin file from the examples folder
   Step 2 : Upload it to your Amazon S3 account, in a bucket of your choice
   Step 3 : Once uploaded, inside S3, select the bin file >> More (button on top of the file list) >> Make Public
   Step 4 : You S3 URL => http://bucket-name.s3.ap-south-1.amazonaws.com/sketch-name.ino.bin
   Step 5 : Build the above URL and fire it either in your browser or curl it `curl -I -v http://bucket-name.ap-south-1.amazonaws.com/sketch-name.ino.bin` to validate the same
   Step 6:  Plug in your SSID, Password, S3 Host and Bin file below

   Build & upload
   Step 1 : Menu > Sketch > Export Compiled Library. The bin file will be saved in the sketch folder (Menu > Sketch > Show Sketch folder)
   Step 2 : Upload bin to S3 and continue the above process

   // Check the bottom of this sketch for sample serial monitor log, during and after successful OTA Update
*/

#include <WiFi.h>
#include <Update.h>

WiFiClient client;

// Variables to validate
// response from S3
int contentLength = 0;
bool isValidContentType = false;

// Your SSID and PSWD that the chip needs
// to connect to
const char* SSID = "YOUR-SSID";
const char* PSWD = "YOUR-SSID-PSWD";

// S3 Bucket Config
String host = "bucket-name.s3.ap-south-1.amazonaws.com"; // Host => bucket-name.s3.region.amazonaws.com
int port = 80; // Non https. For HTTPS 443. As of today, HTTPS doesn't work.
String bin = "/sketch-name.ino.bin"; // bin file name with a slash in front.

// Utility to extract header value from headers
String getHeaderValue(String header, String headerName) {
  return header.substring(strlen(headerName.c_str()));
}

// OTA Logic
void execOTA() {
  Serial.println("Connecting to: " + String(host));
  // Connect to S3
  if (client.connect(host.c_str(), port)) {
    // Connection Succeed.
    // Fecthing the bin
    Serial.println("Fetching Bin: " + String(bin));

    // Get the contents of the bin file
    client.print(String("GET ") + bin + " HTTP/1.1\r\n" +
                 "Host: " + host + "\r\n" +
                 "Cache-Control: no-cache\r\n" +
                 "Connection: close\r\n\r\n");

    // Check what is being sent
    //    Serial.print(String("GET ") + bin + " HTTP/1.1\r\n" +
    //                 "Host: " + host + "\r\n" +
    //                 "Cache-Control: no-cache\r\n" +
    //                 "Connection: close\r\n\r\n");

    unsigned long timeout = millis();
    while (client.available() == 0) {
      if (millis() - timeout > 5000) {
        Serial.println("Client Timeout !");
        client.stop();
        return;
      }
    }
    // Once the response is available,
    // check stuff

    /*
       Response Structure
        HTTP/1.1 200 OK
        x-amz-id-2: NVKxnU1aIQMmpGKhSwpCBh8y2JPbak18QLIfE+OiUDOos+7UftZKjtCFqrwsGOZRN5Zee0jpTd0=
        x-amz-request-id: 2D56B47560B764EC
        Date: Wed, 14 Jun 2017 03:33:59 GMT
        Last-Modified: Fri, 02 Jun 2017 14:50:11 GMT
        ETag: "d2afebbaaebc38cd669ce36727152af9"
        Accept-Ranges: bytes
        Content-Type: application/octet-stream
        Content-Length: 357280
        Server: AmazonS3

        {{BIN FILE CONTENTS}}

    */
    while (client.available()) {
      // read line till /n
      String line = client.readStringUntil('\n');
      // remove space, to check if the line is end of headers
      line.trim();

      // if the the line is empty,
      // this is end of headers
      // break the while and feed the
      // remaining `client` to the
      // Update.writeStream();
      if (!line.length()) {
        //headers ended
        break; // and get the OTA started
      }

      // Check if the HTTP Response is 200
      // else break and Exit Update
      if (line.startsWith("HTTP/1.1")) {
        if (line.indexOf("200") < 0) {
          Serial.println("Got a non 200 status code from server. Exiting OTA Update.");
          break;
        }
      }

      // extract headers here
      // Start with content length
      if (line.startsWith("Content-Length: ")) {
        contentLength = atoi((getHeaderValue(line, "Content-Length: ")).c_str());
        Serial.println("Got " + String(contentLength) + " bytes from server");
      }

      // Next, the content type
      if (line.startsWith("Content-Type: ")) {
        String contentType = getHeaderValue(line, "Content-Type: ");
        Serial.println("Got " + contentType + " payload.");
        if (contentType == "application/octet-stream") {
          isValidContentType = true;
        }
      }
    }
  } else {
    // Connect to S3 failed
    // May be try?
    // Probably a choppy network?
    Serial.println("Connection to " + String(host) + " failed. Please check your setup");
    // retry??
    // execOTA();
  }

  // Check what is the contentLength and if content type is `application/octet-stream`
  Serial.println("contentLength : " + String(contentLength) + ", isValidContentType : " + String(isValidContentType));

  // check contentLength and content type
  if (contentLength && isValidContentType) {
    // Check if there is enough to OTA Update
    bool canBegin = Update.begin(contentLength);

    // If yes, begin
    if (canBegin) {
      Serial.println("Begin OTA. This may take 2 - 5 mins to complete. Things might be quite for a while.. Patience!");
      // No activity would appear on the Serial monitor
      // So be patient. This may take 2 - 5mins to complete
      size_t written = Update.writeStream(client);

      if (written == contentLength) {
        Serial.println("Written : " + String(written) + " successfully");
      } else {
        Serial.println("Written only : " + String(written) + "/" + String(contentLength) + ". Retry?" );
        // retry??
        // execOTA();
      }

      if (Update.end()) {
        Serial.println("OTA done!");
        if (Update.isFinished()) {
          Serial.println("Update successfully completed. Rebooting.");
          ESP.restart();
        } else {
          Serial.println("Update not finished? Something went wrong!");
        }
      } else {
        Serial.println("Error Occurred. Error #: " + String(Update.getError()));
      }
    } else {
      // not enough space to begin OTA
      // Understand the partitions and
      // space availability
      Serial.println("Not enough space to begin OTA");
      client.flush();
    }
  } else {
    Serial.println("There was no content in the response");
    client.flush();
  }
}

void setup() {
  //Begin Serial
  Serial.begin(115200);
  delay(10);

  Serial.println("Connecting to " + String(SSID));

  // Connect to provided SSID and PSWD
  WiFi.begin(SSID, PSWD);

  // Wait for connection to establish
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print("."); // Keep the serial monitor lit!
    delay(500);
  }

  // Connection Succeed
  Serial.println("");
  Serial.println("Connected to " + String(SSID));

  // Execute OTA Update
  execOTA();
}

void loop() {
  // chill
}

/*
 * Serial Monitor log for this sketch
 *
 * If the OTA succeeded, it would load the preference sketch, with a small modification. i.e.
 * Print `OTA Update succeeded!! This is an example sketch : Preferences > StartCounter`
 * And then keeps on restarting every 10 seconds, updating the preferences
 *
 *
      rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
      configsip: 0, SPIWP:0x00
      clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
      mode:DIO, clock div:1
      load:0x3fff0008,len:8
      load:0x3fff0010,len:160
      load:0x40078000,len:10632
      load:0x40080000,len:252
      entry 0x40080034
      Connecting to SSID
      ......
      Connected to SSID
      Connecting to: bucket-name.s3.ap-south-1.amazonaws.com
      Fetching Bin: /StartCounter.ino.bin
      Got application/octet-stream payload.
      Got 357280 bytes from server
      contentLength : 357280, isValidContentType : 1
      Begin OTA. This may take 2 - 5 mins to complete. Things might be quite for a while.. Patience!
      Written : 357280 successfully
      OTA done!
      Update successfully completed. Rebooting.
      ets Jun  8 2016 00:22:57

      rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
      configsip: 0, SPIWP:0x00
      clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
      mode:DIO, clock div:1
      load:0x3fff0008,len:8
      load:0x3fff0010,len:160
      load:0x40078000,len:10632
      load:0x40080000,len:252
      entry 0x40080034

      OTA Update succeeded!! This is an example sketch : Preferences > StartCounter
      Current counter value: 1
      Restarting in 10 seconds...
      E (102534) wifi: esp_wifi_stop 802 wifi is not init
      ets Jun  8 2016 00:22:57

      rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
      configsip: 0, SPIWP:0x00
      clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
      mode:DIO, clock div:1
      load:0x3fff0008,len:8
      load:0x3fff0010,len:160
      load:0x40078000,len:10632
      load:0x40080000,len:252
      entry 0x40080034

      OTA Update succeeded!! This is an example sketch : Preferences > StartCounter
      Current counter value: 2
      Restarting in 10 seconds...

      ....
 *
 */

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

/**

AWS S3 OTA Update

Date: 14th June 2017

Author: Arvind Ravulavaru <https://github.com/arvindr21>

Purpose: Perform an OTA update from a bin located in Amazon S3 (HTTP Only)

Upload:

Step 1 : Download the sample bin file from the examples folder

Step 2 : Upload it to your Amazon S3 account, in a bucket of your choice

Step 3 : Once uploaded, inside S3, select the bin file >> More (button on top of the file list) >> Make Public

Step 4 : You S3 URL => http://bucket-name.s3.ap-south-1.amazonaws.com/sketch-name.ino.bin

Step 5 : Build the above URL and fire it either in your browser or curl it `curl -I -v http://bucket-name.ap-south-1.amazonaws.com/sketch-name.ino.bin` to validate the same

Step 6: Plug in your SSID, Password, S3 Host and Bin file below

Build & upload

Step 1 : Menu > Sketch > Export Compiled Library. The bin file will be saved in the sketch folder (Menu > Sketch > Show Sketch folder)

Step 2 : Upload bin to S3 and continue the above process

// Check the bottom of this sketch for sample serial monitor log, during and after successful OTA Update

#include <WiFi.h>

#include <Update.h>

WiFiClient client;

// Variables to validate

// response from S3

int contentLength = 0;

bool isValidContentType = false;

// Your SSID and PSWD that the chip needs

// to connect to

const char* SSID = "YOUR-SSID";

const char* PSWD = "YOUR-SSID-PSWD";

// S3 Bucket Config

String host = "bucket-name.s3.ap-south-1.amazonaws.com"; // Host => bucket-name.s3.region.amazonaws.com

int port = 80; // Non https. For HTTPS 443. As of today, HTTPS doesn't work.

String bin = "/sketch-name.ino.bin"; // bin file name with a slash in front.

// Utility to extract header value from headers

String getHeaderValue(String header, String headerName) {

return header.substring(strlen(headerName.c_str()));

}

// OTA Logic

void execOTA() {

Serial.println("Connecting to: " + String(host));

// Connect to S3

if (client.connect(host.c_str(), port)) {

// Connection Succeed.

// Fecthing the bin

Serial.println("Fetching Bin: " + String(bin));

// Get the contents of the bin file

client.print(String("GET ") + bin + " HTTP/1.1\r\n" +

"Host: " + host + "\r\n" +

"Cache-Control: no-cache\r\n" +

"Connection: close\r\n\r\n");

// Check what is being sent

// Serial.print(String("GET ") + bin + " HTTP/1.1\r\n" +

// "Host: " + host + "\r\n" +

// "Cache-Control: no-cache\r\n" +

// "Connection: close\r\n\r\n");

unsigned long timeout = millis();

while (client.available() == 0) {

if (millis() - timeout > 5000) {

Serial.println("Client Timeout !");

client.stop();

return;

}

// Once the response is available,

// check stuff

Response Structure

HTTP/1.1 200 OK

x-amz-id-2: NVKxnU1aIQMmpGKhSwpCBh8y2JPbak18QLIfE+OiUDOos+7UftZKjtCFqrwsGOZRN5Zee0jpTd0=

x-amz-request-id: 2D56B47560B764EC

Date: Wed, 14 Jun 2017 03:33:59 GMT

Last-Modified: Fri, 02 Jun 2017 14:50:11 GMT

ETag: "d2afebbaaebc38cd669ce36727152af9"

Accept-Ranges: bytes

Content-Type: application/octet-stream

Content-Length: 357280

Server: AmazonS3

while (client.available()) {

// read line till /n

String line = client.readStringUntil('\n');

// remove space, to check if the line is end of headers

line.trim();

// if the the line is empty,

// this is end of headers

// break the while and feed the

// remaining `client` to the

// Update.writeStream();

if (!line.length()) {

//headers ended

break; // and get the OTA started

}

// Check if the HTTP Response is 200

// else break and Exit Update

if (line.startsWith("HTTP/1.1")) {

if (line.indexOf("200") < 0) {

Serial.println("Got a non 200 status code from server. Exiting OTA Update.");

break;

}

// extract headers here

// Start with content length

if (line.startsWith("Content-Length: ")) {

contentLength = atoi((getHeaderValue(line, "Content-Length: ")).c_str());

Serial.println("Got " + String(contentLength) + " bytes from server");

}

// Next, the content type

if (line.startsWith("Content-Type: ")) {

String contentType = getHeaderValue(line, "Content-Type: ");

Serial.println("Got " + contentType + " payload.");

if (contentType == "application/octet-stream") {

isValidContentType = true;

}

} else {

// Connect to S3 failed

// May be try?

// Probably a choppy network?

Serial.println("Connection to " + String(host) + " failed. Please check your setup");

// retry??

// execOTA();

}

// Check what is the contentLength and if content type is `application/octet-stream`

Serial.println("contentLength : " + String(contentLength) + ", isValidContentType : " + String(isValidContentType));

// check contentLength and content type

if (contentLength && isValidContentType) {

// Check if there is enough to OTA Update

bool canBegin = Update.begin(contentLength);

// If yes, begin

if (canBegin) {

Serial.println("Begin OTA. This may take 2 - 5 mins to complete. Things might be quite for a while.. Patience!");

// No activity would appear on the Serial monitor

// So be patient. This may take 2 - 5mins to complete

size_t written = Update.writeStream(client);

if (written == contentLength) {

Serial.println("Written : " + String(written) + " successfully");

} else {

Serial.println("Written only : " + String(written) + "/" + String(contentLength) + ". Retry?" );

// retry??

// execOTA();

}

if (Update.end()) {

Serial.println("OTA done!");

if (Update.isFinished()) {

Serial.println("Update successfully completed. Rebooting.");

ESP.restart();

} else {

Serial.println("Update not finished? Something went wrong!");

}

} else {

Serial.println("Error Occurred. Error #: " + String(Update.getError()));

}

} else {

// not enough space to begin OTA

// Understand the partitions and

// space availability

Serial.println("Not enough space to begin OTA");

client.flush();

}

} else {

Serial.println("There was no content in the response");

client.flush();

}

void setup() {

//Begin Serial

Serial.begin(115200);

delay(10);

Serial.println("Connecting to " + String(SSID));

// Connect to provided SSID and PSWD

WiFi.begin(SSID, PSWD);

// Wait for connection to establish

while (WiFi.status() != WL_CONNECTED) {

Serial.print("."); // Keep the serial monitor lit!

delay(500);

}

// Connection Succeed

Serial.println("");

Serial.println("Connected to " + String(SSID));

// Execute OTA Update

execOTA();

}

void loop() {

// chill

}

* Serial Monitor log for this sketch

* If the OTA succeeded, it would load the preference sketch, with a small modification. i.e.

* Print `OTA Update succeeded!! This is an example sketch : Preferences > StartCounter`

* And then keeps on restarting every 10 seconds, updating the preferences

rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)

configsip: 0, SPIWP:0x00

clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00

mode:DIO, clock div:1

load:0x3fff0008,len:8

load:0x3fff0010,len:160

load:0x40078000,len:10632

load:0x40080000,len:252

entry 0x40080034

Connecting to SSID

......

Connected to SSID

Connecting to: bucket-name.s3.ap-south-1.amazonaws.com

Fetching Bin: /StartCounter.ino.bin

Got application/octet-stream payload.

Got 357280 bytes from server

contentLength : 357280, isValidContentType : 1

Begin OTA. This may take 2 - 5 mins to complete. Things might be quite for a while.. Patience!

Written : 357280 successfully

OTA done!

Update successfully completed. Rebooting.

ets Jun 8 2016 00:22:57

rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)

configsip: 0, SPIWP:0x00

clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00

mode:DIO, clock div:1

load:0x3fff0008,len:8

load:0x3fff0010,len:160

load:0x40078000,len:10632

load:0x40080000,len:252

entry 0x40080034

OTA Update succeeded!! This is an example sketch : Preferences > StartCounter

Current counter value: 1

Restarting in 10 seconds...

E (102534) wifi: esp_wifi_stop 802 wifi is not init

ets Jun 8 2016 00:22:57

rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)

configsip: 0, SPIWP:0x00

clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00

mode:DIO, clock div:1

load:0x3fff0008,len:8

load:0x3fff0010,len:160

load:0x40078000,len:10632

load:0x40080000,len:252

entry 0x40080034

OTA Update succeeded!! This is an example sketch : Preferences > StartCounter

Current counter value: 2

Restarting in 10 seconds...

....

refer：

日期: 2023 年 2 月 25 日

【玩转ESP32】ESP32串口使用

1、ESP32串口

2、API

2.1、安装uart驱动

2.2、uart参数配置

2.3、接收阈值设置

2.4、串口引脚设置

2.5、从接收缓冲区读取数据

2.6、数据写入发送缓冲区

3、代码实现

3.1、参数定义

3.2、串口初始化

3.3、串口任务函数

4、使用总结

如何实现 ESP32 固件的 OTA 在线升级更新

1、背景

2、OTA 简介

2.1、ESP32 的 OTA 升级有三种方式：

2.2、保密性 Security

2.3、OTA 升级策略 - 针对 HTTP

3、OTA 实例解析

3.1、Arduino IDE方案固件更新

3.2、Web Browser 方案固件更新

3.3、HTTP 服务器实现更新

参考链接

2023 年 2 月
一	二	三	四	五	六	日
		1	2	3	4	5
6	7	8	9	10	11	12
13	14	15	16	17	18	19
20	21	22	23	24	25	26
27	28
